We are a leading manufacturer of point source LEDs.
- Over 20 years of experience in manufacturing and selling the point source LEDs for high-end industrial machinery and high precision sensors
- Top-class market share in Japan
- Widely sold in Europe, the United States and Asia
Star LED Features
High reliability
Small size light emitting window
Stable Lambertian light distribution
Product line up
Infrared Point source LEDs
|
Wave Length (nm) |
Model name |
Appearance | Dimenssion (μm) |
Light Output (mW) |
Cutoff Frequency (MHz) |
Imax (mA) (DC,RT) |
Operating temperature (℃) |
Low stray light | Features | Catalog | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Light emitting window |
Die size L x W x T |
@50mA |
@50mA ±20mA |
||||||||
| 855 | MED8P51 |  |
170×50 | 590×370×250 | 2.0 | - | 80 | -20~80 | ✕ | Oval shape window | PDF:315KB |
| MED8P53 |  |
φ60 | 370×270×250 | 2.0 | 45.0 | 80 | -20~80 | ✕ | Small window | PDF:318KB | |
| MED8P54 |  |
φ160 | 490×310×250 | 2.4 | 25.0 | 100 | -20~80 | ✕ | High reliability | PDF:315KB | |
| MED8P56A |  |
φ160 | 510×350×250 | 2.4 | 25.0 | 100 | -20~80 | ◯ | Low stray light | PDF:358KB | |
| MED8P62 |  |
φ60 | 590×370×250 | 2.0 | 45.0 | 80 | -20~80 | ✕ | Ball lens mountable | PDF:322KB | |
| MED8P67A |  |
φ60 | 400×300×250 | 2.0 | 45.0 | 80 | -20~80 | ◯ | Small window Low stray light | PDF:315KB | |
| MED8P73 |  |
φ60 | 370×270×250 | 2.0 | 45.0 | 80 | -40~105 | ✕ | 105℃ operation | PDF:271KB | |
| MED8P74 |  |
φ160 | 490×310×250 | 2.4 | 25.0 | 100 | -40~105 | ✕ | 105℃ operation | PDF:270KB | |
| MED8P75A |  |
φ60 | 370×270×250 | 1.5 | - | 70 | -40～125 | ◯ | Small window、Low stray light、125℃ operation | 【Preparation】 | |
| MED8P77A |  |
φ160 | 490×310×250 | 1.8 | - | 150 | -40～125 | ◯ | High reliability、Low stray light、125℃ operation | 【Preparation】 | |
|
Wave Length (nm) |
Model name |
Appearance | Dimenssion (μm) |
Light Output (mW) |
Cutoff Frequency (MHz) |
Imax (mA) (DC,RT) |
Operating temperature (℃) |
Low stray light | Features | Catalog | |
|
Light emitting window |
Die size L x W x T |
@50mA |
@50mA ±20mA |
||||||||
| 855 | MED8P59 |  |
φ35 | 370×270×250 | 0.7 | - | 30 | -20~80 | ✕ | Ultra small window | PDF:370KB |
| MED8P76A |  |
φ45 | 370x270x250 | 0.6 | - | 55 | -40~125 | ◯ | Ultra small window、Low stray light、125℃ operation | 【Preparation】 | |
| MED8P51 | MED8P53 | MED8P54 | MED8P56A | MED8P62 | MED8P67A | MED8P73 | MED8P74 | MED8P75A | MED8P77A | MED8P59 | MED8P76A |
|
|
|
|
|
|
|
|
|
|
|
|
Red Point source LEDs
|
Wave Length (nm) |
Model name |
Appearance | Dimenssion (μm) |
Light Output (mW) |
Cutoff Frequency (MHz) |
Imax (mA) (DC,RT) |
Operating temperature (℃) |
Low stray light | Features | Catalog | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Light emitting window |
Die size L x W x T |
@50mA |
@50mA ±20mA |
||||||||
| 650 | MED7P2 |  |
φ160 | 490×310×250 | 1.0 | - | 50 | -40~85 | ✕ | High reliability | PDF:285KB |
| MED7P4 |  |
150x40 | 490×310×250 | 0.9 | - | 25 | -40~85 | ✕ | Oval shape window | PDF:321KB | |
| MED7P5 |  |
φ150 | 370×220×180 | 0.9 | - | 50 | -40~85 | ✕ | High reliability | PDF:282KB | |
| MED7P7 |  |
φ80 | 320×220×200 | 0.9 | 45.0 | 25 | -40~85 | ✕ | Small window、High Speed | PDF:288KB | |
| MED7P14 |  |
φ160 | 520×340×150 | 2.0 | - | 50 | -40~85 | ✕ | High output | PDF:289KB | |
| MED7P14C |  |
φ160 | 520×340×150 | 2.0 | - | 50 | -40~85 | ◯ | High output、Low stray light | PDF:362KB | |
|
Wave Length (nm) |
Model name |
Appearance | Dimenssion (μm) |
Light Output (mW) |
Cutoff Frequency (MHz) |
Imax (mA) (DC,RT) |
Operating temperature (℃) |
Low stray light | Features | Catalog | |
|
Light emitting window |
Die size L x W x T |
@50mA |
@50mA ±20mA |
||||||||
| 650 | MED7P25 |  |
φ170 | 520×340×150 | 9.0 | - | 80 | -40~85 | ◯ | High output、Low stray light | 【Preparation】 |
| MED7P2 | MED7P4 | MED7P5 | MED7P7 | MED7P14 | MED7P14C | MED7P25 |
|
|
|
|
|
|
|
LED Package
| Type |
Model name |
Wave Length (nm) |
Beam angle |
Output power(mW) |
Remarks | Catalog | |
|---|---|---|---|---|---|---|---|
| FWHM(°) | @20mA | @50mA | |||||
|
Surface Mount |
MED7P14-SMF-1 | 650 | 130 | 5.7 | - | Thin | PDF:359KB |
| MED7P14-SMF-4 | 130 | 5.7 | - | Lambertian light Distribution | PDF:387KB | ||
| MED7P14C-SMF-5 | 130 | 5.7 | - | Small package 、Lambertian light Distribution | PDF:402KB | ||
| MED7P14C-SMF-7 | 130 | 4.5 | - | Lambertian light Distribution | PDF:391KB | ||
| Can | MED8P53-M18F-2 | 855 | 120 | - | 2.0 | TO-18 flat lens | - |
| MED8P54-M46F-5 | 100 | - | 2.8 | TO-46 flat lens | - | ||
| MED8P54-M46L-2 | 4 | - | 4.0 | TO-46 dome lens | - | ||
<Surface moment>
Variety Line up
Wide Temperature budget
- MED8P73
- MED8P74
- MED8P75A【Development】
- MED8P77A【Development】
- MED8P76A【Development】
Up to 125℃ operation is available
A comparison of derating curves
Low stray light
- MED8P56A
- MED8P67A
- MED8P75A【Development】
- MED8P77A【Development】
- MED8P76A【Development】
Stray light suppression by a die side coating structure
Suitable for reflective encoders
Suitable for reflective encoders
Normal type
Low stray light type
High Power
- MED7P14
- MED7P14C
- MED7P25
Wafer Bonding Technology
The MED7P14 and MED7P14C have improved the extraction efficiency of light by attaching a metal mirror to the lower layer of the emitting layer. They achieve twice the light output compared to previous products. Furthermore, we have developed the MED7P25, which offers even higher light output.

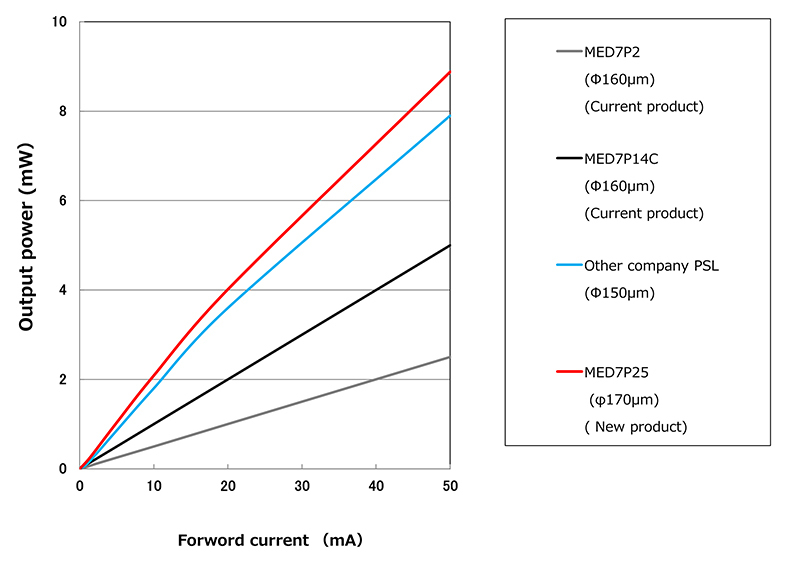

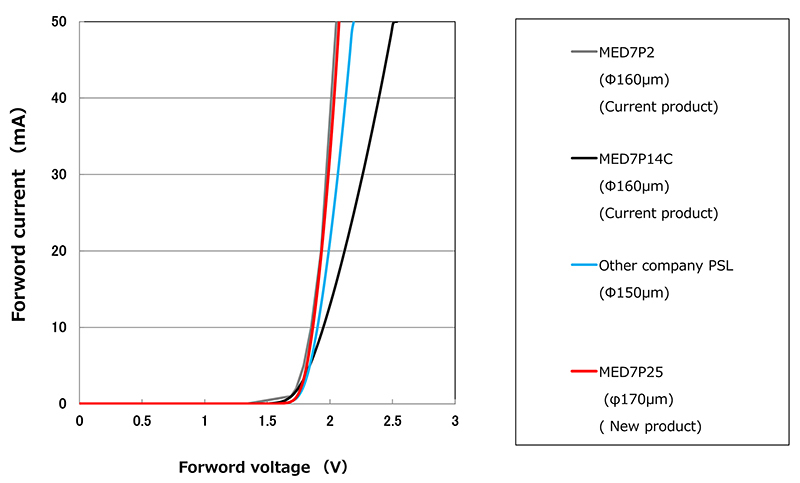

A comparison of output power
Applications
The Star LED offers high reliability emitters for various industrial applications.
It enables higher resolution for optical encoders and high accuracy for photoelectric sensors.
Application to optical encoders
Star LED
Conventional LED
Application to photoelectric sensors
Star LED
Conventional LED
